Per triginta annos peritia industriae congestae, et adhibendo chalybem marinum-gradum summus qualitas nostrae materiae rudis, habemus — per severam qualitatem temperantiae systematis Gradus 1 Studless Anchor Vincula quae continent flexibilitatem et durabilitatem. Qua de re notam praelatam facti sumus multis nautis et operariis portubus quaerentibus ad hoc genus operis comparandum. per eligensCSAC Chain pro Gradu 1 Tuo Procuratio Studless Anchor Catena, accessum ad plenam obsequio moderatricem, catenam copiam stabilis, subsidia technicam peritiam, ita ut ancoras exigentias omnium operationum marinarum plene conveniant.
| Chain Diameter (mm) |
Gradus 1 | Gradus 2 | Gradus 3 | Approx..massa (27.5m) (kg) |
|||
| PL* (kn) |
BL (kn) |
PL* (kn) |
BL (kn) |
PL* (kn) |
BL (kn) |
||
| 6 | 6.62 | 13.32 | 9.30 | 18.60 | - | - | 21.5 |
| 7 | 9.02 | 18.13 | 12.60 | 25.20 | - | - | 29.2 |
| 8 | 11.78 | 23.68 | 16.50 | 33.00 | - | - | 38.3 |
| 9 | 14.90 | 29.97 | 20.90 | 41.80 | - | - | 48.4 |
| 10 | 18.40 | 37.00 | 25.80 | 51.60 | - | - | 59.7 |
| 11 | 22.26 | 44.70 | 31.20 | 62.40 | - | - | 72.3 |
| 12.5 | 28.75 | 57.81 | 41.20 | 82.60 | - | - | 93.5 |
| 14 | 34.48 | 69.93 | 51.00 | 101.90 | - | - | 117.2 |
| 16 | 47.10 | 94.72 | 66.20 | 132.30 | 92.42 | 184.83 | 152.9 |
| 17.5 | 56.35 | 113.31 | 78.89 | 157.78 | 110.55 | 221.10 | 182.8 |
| 19 | 66.42 | 133.57 | 93.60 | 187.20 | 130.32 | 260.64 | 249.5 |
| 20.5 | 77.33 | 155.49 | 108.64 | 217.27 | 151.70 | 303.42 | 275.4 |
| 22 | 89.06 | 179.08 | 125.40 | 250.90 | 174.40 | 349.40 | 328.6 |
| 24 | 105.98 | 213.25 | 149.90 | 298.90 | 207.90 | 415.80 | 385.0 |
| 26 | 124.38 | 250.12 | 175.40 | 350.80 | 144.00 | 488.00 | 449.1 |
| 28 | 144.26 | 290.08 | 203.80 | 406.70 | 283.00 | 566.00 | 516.7 |
| 30 | 165.60 | 333.00 | 234.20 | 467.50 | 324.90 | 649.80 | 589.4 |
| 32 | 188.42 | 378.88 | 256.60 | 531.20 | 369.60 | 739.30 | 664.6 |
| 34 | 212.70 | 427.72 | 299.90 | 599.80 | 417.30 | 834.60 | 752.9 |
| 36 | 238.46 | 479.52 | 336.10 | 672.30 | 467.80 | 935.70 | 861.2 |
| 38 | 265.70 | 534.28 | 374.40 | 748.70 | 521.30 | 1042.50 | 957.5 |
| 40 | 249.40 | 592.00 | 414.50 | 829.10 | 577.60 | 1155.20 | 1056.2 |
| 42 | 324.58 | 652.68 | 457.70 | 915.30 | 636.80 | 1273.60 | 1166.5 |
| 44 | 356.22 | 716.32 | 502.70 | 999..60 | 698.90 | 1398.00 | 1270.4 |
| 46 | 389.34 | 782.92 | 548.80 | 1097.6 | 763.90 | 1527.80 | 1396.6 |
| 48 | 423.94 | 852.48 | 597.80 | 1195.6 | 831.70 | 1663.50 | 1520.6 |
| 50 | 460.00 | 926.09 | 648.80 | 1239.6 | 902.50 | 1805.00 | 1650.0 |

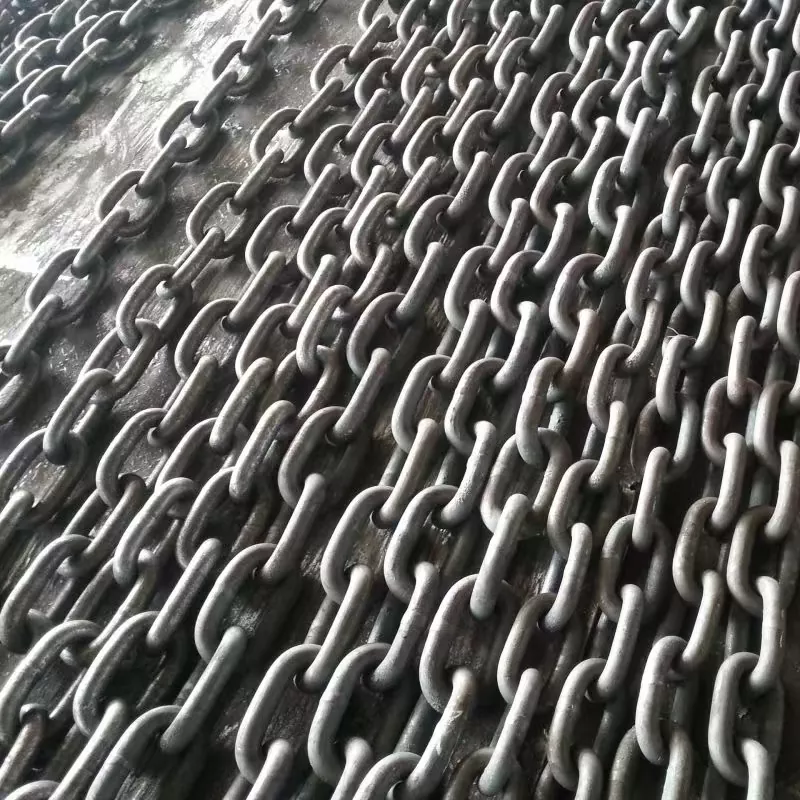

Gradus 1 Studless Anchor Catena lineamenta lenis, studless link design. Haec clausula liberae structurae non solum minuit inter nexus frictiones, sed etiam altiorem flexibilitatem auget, permittens catenam sine labore ad Venustates marinae conformes. Hoc consilium periculum tangendi et snagging reducit, eo facilius tractatio et temperatio in operationibus ancoris navis facilior. Praeterea, inexplicabilis ratio optimizandi spatii usus est, operationes repositas et ornatas aptiores et efficaces faciens, pluma apprime utilis pro vasculis et facultatibus littoris parvis cum capacitate reposita.
Our Grade 1 Catena Stutless Anchor fabricatur utens GENEROSUS natur-gradus ferro. Haec materia eximiam vim ac duritiam habet, ut eam sustineat ictum virium et onerum distrahentium in ancoras operationibus marinis inhaerentibus, dum structurae integritatem ancorae torquem procurant. Superficies curatio optiones includunt calida-intinge galvanizing vel bitumen efficiens. Intingere calvaricans caldarium gignit zincum uniforme, densum stratum, quod catenam a instrumentis mordentibus efficaciter separat, ut marinis et umoribus; bitumen efficiens ulterius resistentiam auget corrosionem, faciens catenam diversis ambitibus marinis aptam cum variis salinitate et humiditate camporum, per quod protendit vitam servitii Gradus 1 Studless Anchor Chain.
Gradus 1 Studless Anchor Cathena vexillum internationale stricte adhaeret ISO 1704. Hoc efficit dimensivam uniformitatem per quamlibet ligaturam, permittens inconsutilem integrationem cum systematibus retinaculis variorum vasorum ac tutandam et stabilitatem operationum ancorarum praestans. Accedit, quod productum certificationibus praesto est ex multiplicibus societatibus internationalibus classificationis-including CCS (China), LR (UK), DNV (Norway), et ABS (USA) — inde occurrens obsequio regulatorio requisitis ad operationes marinas per diversas regiones et regiones. Ideo late applicatur ad latum spectrum vasorum commercialium, lemborum piscationum, navium machinarum, portuum ancorarum facultatum.
| Parameter Nomen | Specification |
| Product Name | Grade 1 Studless Anchor Chain |
| Diameter | 16mm - 90mm |
| Vinculum iaculat Longitudo | 27.5m |
| Materia | High Quality Marine Steel |
| Superficies Curatio | Calidum-dip Galvanizing / Bitumen Painting |
| Executive Standard | ISO1704 |
| Testimonia | CCS, LR, DNV, ABS, BV, NK, KR, RINA, RS |
| Applicationem | Marine & Portus Anchoring Systems |
