A bulla link anchoram catenam est genus gravibus-officium marine torquem, suus 'saepe in navibus et offshore installations firmiter cingulo anchoram ad vas. Contra iusto vincula. Stundlink vincula habent central praevenirent inter se link, quod significantly crescit stabilitatem, prohibet kinking et distribuit onus magis aequaliter. Nos ad Zhoushan Zhongnan ancoris catena co., Ltd. placuit esse unum summitatemTRINCHUSManufacturers et Suspendisse in Sina, offering Bulla Link Anchoram vincula in competitive prices cum altum qualitas.
Fortis constructione, improved laedens resistentia et eximia onus-afferentem facultatem define in Bulla Link Anchoram catenae. Fisher et probata ad normam internationalis signa (ISO, iacs), uterque torquem factum est ex Marine-gradus Alloy Steel et venit in diametri vndique a 16mm ad 162mm, worldwide obsequio. Cum libitum superficies treatments inter calidum, intinge galvanization et bitumen coating praesto.
| Diameter ex Catena |
TRINCHUS | |||
| Abs, BV, ccs, CR, DNV, GL, KR, LR, NK, Rina, RMRS |
||||
| Gradus | Grade3 | |||
| PL C = 0.098 |
BL C = 0.0137 |
PL C = 0.0137 |
BL C = 0.0196 |
|
| (M) | Kn | Kn | Kn | Kn |
| 14 | 82 | 166 | - | - |
| 16 | 107 | 150 | - | - |
| 17.5 | 127 | 179 | - | - |
| 19 | 150 | 211 | - | - |
| 20.5 | 175 | 244 | - | - |
| 22 | 200 | 280 | - | - |
| 24 | 237 | 332 | - | - |
| 26 | 278 | 389 | - | - |
| 28 | 321 | 449 | 449 | 642 |
| 30 | 368 | 514 | 514 | 735 |
| 32 | 417 | 583 | 583 | 833 |
| 34 | 468 | 655 | 655 | 937 |
| 36 | 523 | 732 | 732 | 1050 |
| 38 | 581 | 812 | 812 | 1160 |
| 40 | 640 | 896 | 896 | 1280 |
| 42 | 703 | 981 | 981 | 1400 |
| 44 | 769 | 1080 | 1080 | 1540 |
| 46 | 837 | 1170 | 1170 | 1680 |
| 48 | 908 | 1270 | 1270 | 1810 |
| 50 | 981 | 1370 | 1370 | 1960 |
| 52 | 1060 | 1480 | 1480 | 2110 |
| 54 | 1140 | 1590 | 1590 | 2270 |
| 56 | 1220 | 1710 | 1710 | 2430 |
| 58 | 1290 | 1810 | 1810 | 2600 |
| 60 | 1380 | 1940 | 1940 | 2770 |
| 62 | 1470 | 2060 | 2060 | 2940 |
| 64 | 1560 | 2190 | 2190 | 3130 |
| 66 | 1660 | 2310 | 2310 | 3300 |
| 68 | 1750 | 2450 | 2450 | 3500 |
| 70 | 1840 | 2580 | 2580 | 3690 |
| 73 | 1990 | 2790 | 2790 | 3990 |
| 76 | 2150 | 3010 | 3010 | 4300 |
| 78 | 2260 | 3160 | 3160 | 4500 |
| 81 | 2410 | 3380 | 3380 | 4820 |
| 84 | 2580 | 3610 | 3610 | 5160 |
| 87 | 2750 | 3850 | 3850 | 5500 |
| 90 | 2920 | 4090 | 4090 | 5840 |
| 92 | 3040 | 4260 | 4260 | 6080 |
| 95 | 3230 | 4510 | 4510 | 6440 |
| 97 | 3340 | 4680 | 4680 | 6690 |
| 100 | 3530 | 4940 | 4940 | 7060 |
| 102 | 3660 | 5120 | 5120 | 7320 |
| 105 | 3850 | 5390 | 5390 | 7700 |
| 107 | 3980 | 5570 | 5570 | 7960 |
| 111 | 4250 | 5940 | 5940 | 8480 |
| 114 | 4440 | 6230 | 6230 | 8890 |
| 117 | 4650 | 6510 | 6510 | 9300 |
| 120 | 4850 | 6810 | 6810 | 9720 |
| 122 | 5000 | 7000 | 7000 | 9990 |
| 124 | 5140 | 7200 | 7200 | 10280 |
| 127 | 5350 | 7490 | 7490 | 10710 |
| 130 | 5570 | 7800 | 7800 | 11140 |
| 132 | 5720 | 8000 | 8000 | 11420 |
| 137 | 6080 | 8510 | 8510 | 12610 |
| 142 | 6450 | 9030 | 9030 | 12910 |
| 147 | 6840 | 9560 | 9560 | 13660 |
| 152 | 7220 | 10100 | 10100 | 14430 |
| 157 | 7600 | 10640 | 10640 | 15200 |
| 162 | 7990 | 11180 | 11180 | 15980 |

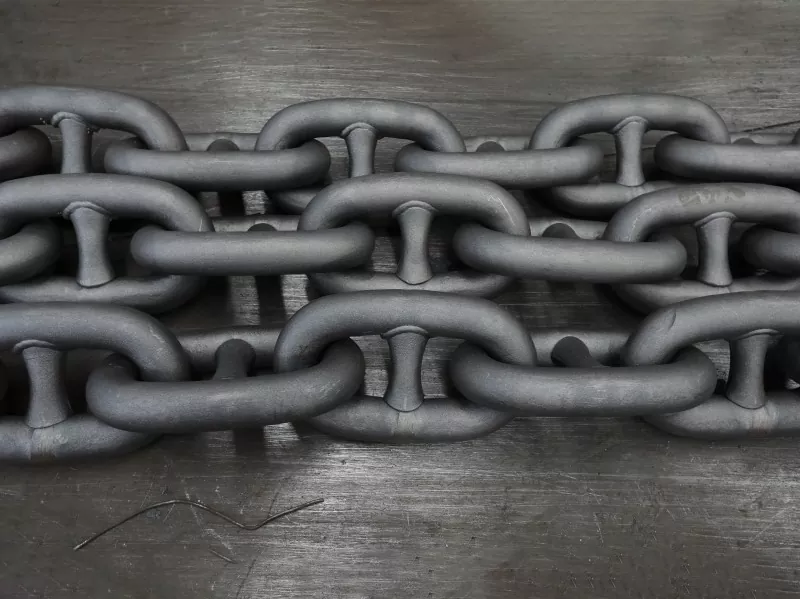

In praevia praesentia est prima distinctione. A bar per media inter se link inBulla LinkAdjuvat catena custodiat figura et vitare torquens sub onus. Hoc consilio ensures levior transitus per Gloria rotae et windelases, amplio solveret vires et significantly reduces gerunt inter links.Anchoram chainsIn alia manu, sunt magis flexibile et levior, faciens ea maluit electionis in locis, ubi pondus reductionem est.
Bulla Link Anchoram vincula commendatur ad grave-officium applications ubi catenam integritatem et altum load capacitatem sunt essentialis, ut navali vasa, FPPsos, Offshore Rigs et Oceangoing naves. Sunt aedificatur resistere gravi tempestate, longa et valida excursus. Studues ancoris vincula sunt magis saepe in Offshore Platforms, maritima shipping et minor naves ubi pondus et flexibilitate sunt commodius.
Nostra uber linea Covers ut tum Bulla link Anchoram vincula vasa, quae sunt frequenter ad coniungere ancoras et spondet tutum mooring of mercatoris naves, tankers, et navali, ut bene ut Bulla Link Mororiensis, in specie, et observatio est.
